Truck TPMS Rs232/485 Receiver Tubeless Paste Type Internal Sensors with Standard Data Format for Various Vehicle System Integration

Short Description:

RS232/485 Receiver：
PCB copper : 1OZ
PCB thickness : 1.0mm
PCBA weight: 4.3g±1g
Working voltage: 5V-18V
Working current :8.3mA
Reception sensitivity : -97dbm
Working temperature: -40-+85℃
Dimensions : 4.6cm（ length ）*2.0cm（ width ）
Repeater:
Waterproof grade: IP67
Normal current: 4.5mA
Transmit current: <50mA
Transmit power: <10dbm
Operating voltage: ACC24V
Reception sensitivity: -95dbm
Working frequency: 433.92MHz
Operating temperature: -40-90℃
Machine port: Vehicle power input
Power supply mode: Vehicle power
Machine weight(excluding packaging): 120g±3g
Dimensions: 11.7cm(length)*7.9cm(width)*2.2cm(height)

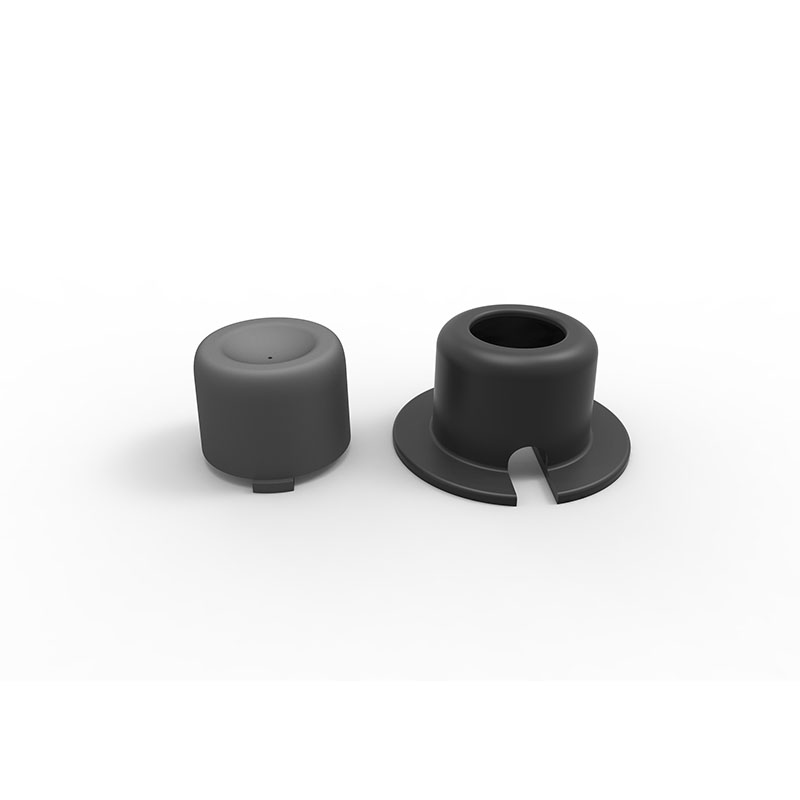

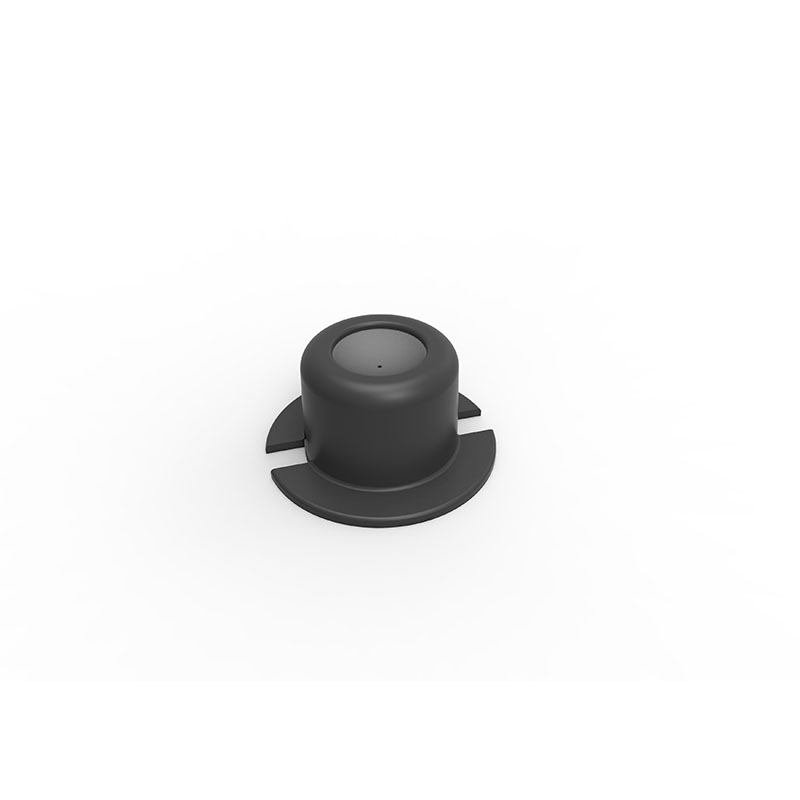

Paste type Sensor:
Sleep current: 0.5uA
Waterproof grade: IP67
Battery model: CR2050
Rubber material: EPDM
Self-test current: 2.2mA
Emission current: 8.7mA
Transmit power: -10dbm
Battery capacity: 350mAh
Working voltage: 2.1V-3.6V
Plastic material: nylon + glass fiber
Power supply mode: button battery
Transmission frequency: 433.92MHz
Size: Φ5.6cm (diameter)*2.8cm (height)
Sensor working temperature: 40℃-125℃
Shell tmperature resistance: -50℃-150℃
